BMW E36 Diff Brace & Rear Cover Reinforcement

Name: BMW E36 Diff Brace & Rear Cover Reinforcement
Brand: RacingDiffs
SKU: RD7010
Price: 60.0 EUR
Availability: InStock

RD7010

.price-ui--loading { display: block !important; opacity: 1 !important; }

120,00€60,00€

Stop the “pumpkin-ear” problem for good — E36 Differential Brace

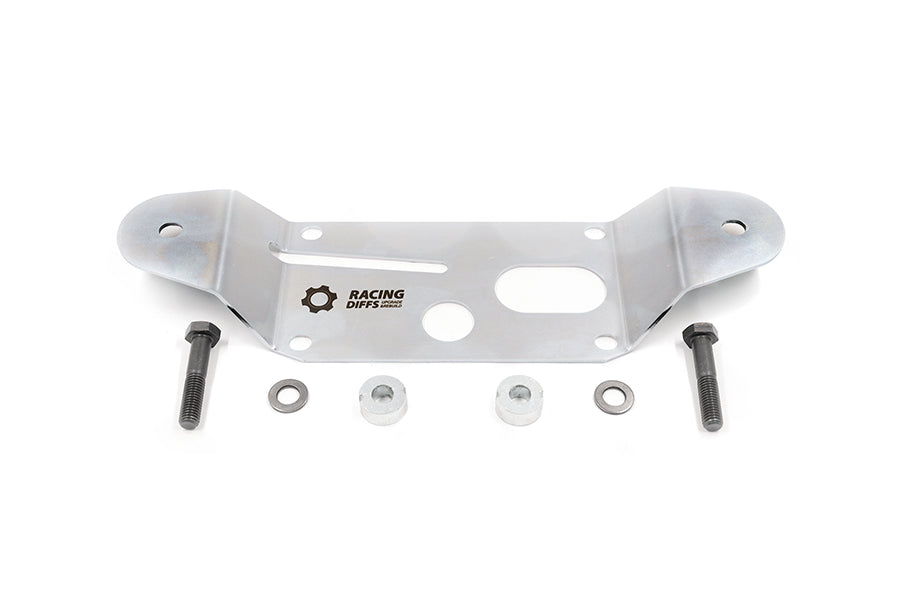

Hard launches, clutch kicks and sticky tires can crack the thin aluminum ears on an E36 rear-diff cover, ripping threads out of the subframe and ending your track session early. The RacingDiffs Differential Brace eliminates that weak point by distributing torque through a laser-cut steel plate that ties both cover ears directly into the subframe.

Features

Laser-cut 3 mm steel: Zinc-plated for corrosion resistance and stiffness under shock loads.
Complete hardware: Grade 10.9 bolts and CNC-machined spacers included—no extra trips for parts.
Bolt-on install: Under an hour; no welding and full access retained to ABS/speed sensor.
Bushing-agnostic: Works with OEM rubber or solid diff bushings.
Track-tested: Proven on drift, time-attack and turbo builds up to 1000 Nm.

Performance Benefits

Prevents ear cracking and thread pull-out on the diff cover.
Distributes torque loads into the subframe to protect the housing.
Improves reliability for hard launches, clutch kicks, sticky tires and high-grip setups.
Peace of mind for track days, drift events and high-power street cars.

Technical Specs / Installation Tips

Material & finish	Laser-cut steel plate, 3 mm thick, zinc-plated.
Hardware	Grade 10.9 bolts + CNC-machined spacers (included).
Install time	~45–60 minutes; bolt-on; no welding required.
Tips	Support differential safely, clean threads, use medium-strength threadlocker, and torque fasteners to BMW spec. Recheck torque after first heat cycle.
