    Home / Special tools, upgrades and spares / BMW M Longer Output Flange Upgrade for Motorsport LSD Swap

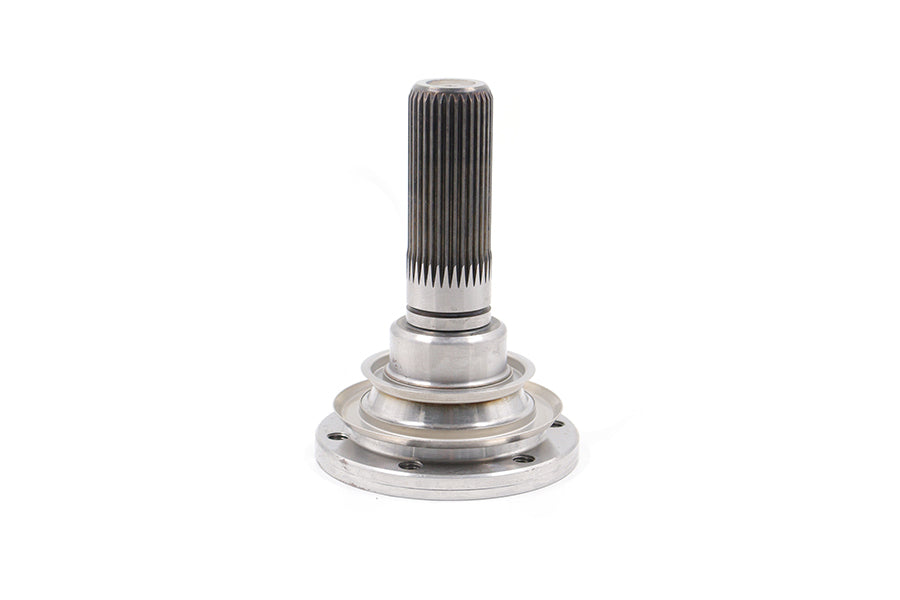

    RacingDiffs long output flange for BMW M models—32-spline shaft with 6-bolt pattern, required for Motorsport clutch-type LSD swap on E46/E92 M3, Z4 M, E60 M5, E63 M6 differentials
    Genuine BMW output flange 33131214068, 6×102 mm PCD, for E92 M3/E60 M5 Motorsport LSD swap
    Genuine BMW output flange 33131214087, 6×94 mm PCD, for E46 M3/Z4 M Motorsport LSD swap
    RacingDiffs long output flange for BMW M models—32-spline shaft with 6-bolt pattern, required for Motorsport clutch-type LSD swap on E46/E92 M3, Z4 M, E60 M5, E63 M6 differentials
    Genuine BMW output flange 33131214068, 6×102 mm PCD, for E92 M3/E60 M5 Motorsport LSD swap
    Genuine BMW output flange 33131214087, 6×94 mm PCD, for E46 M3/Z4 M Motorsport LSD swap

    BMW M Longer Output Flange Upgrade for Motorsport LSD Swap

    RD3072

    260,00€ - 290,00€
    Size

    Why you need this flange

    BMW’s factory GKN Visco-lock differential uses two different-length output flanges. When you upgrade to the RacingDiffs Motorsport clutch-type LSD — an internal “asymmetrical” design — you must replace the shorter flange with a longer one so both sides match. That’s exactly what this Genuine BMW flange does.

    Variant BMW part # Bolt circle Typical models*
    M12 / 6×102 mm 33131214068 6×102 mm PCD E92 M3, E60 M5, E63/64 M6
    M10 / 6×94 mm 33131214087 6×94 mm PCD E46 M3, Z4 M (E85/86)



    Key features

    • Genuine BMW forging—zero compromise on spline fit or heat-treatment.
    • Matches RacingDiffs Motorsport LSD spline geometry.
    • Supplied un-cut so you can shorten precisely to your housing depth.
    • Perfect companion to our All-Solution LSD Unit for M-cars.

    Compatible chassis

    • E46 M3 (S54) – requires 33131214087
    • Z4 M Cou­pé / Roadster (S54) – requires 33131214087
    • E92 M3 (S65) – requires 33131214068
    • E60 M5 (S85) – requires 33131214068
    • E63/E64 M6 (S85) – requires 33131214068
