Subaru Impreza WRX STI (DCCD and Rear LSD) - Clutch plate service pack
RD4040
229,00€ - 439,00€206,00€ - 395,00€

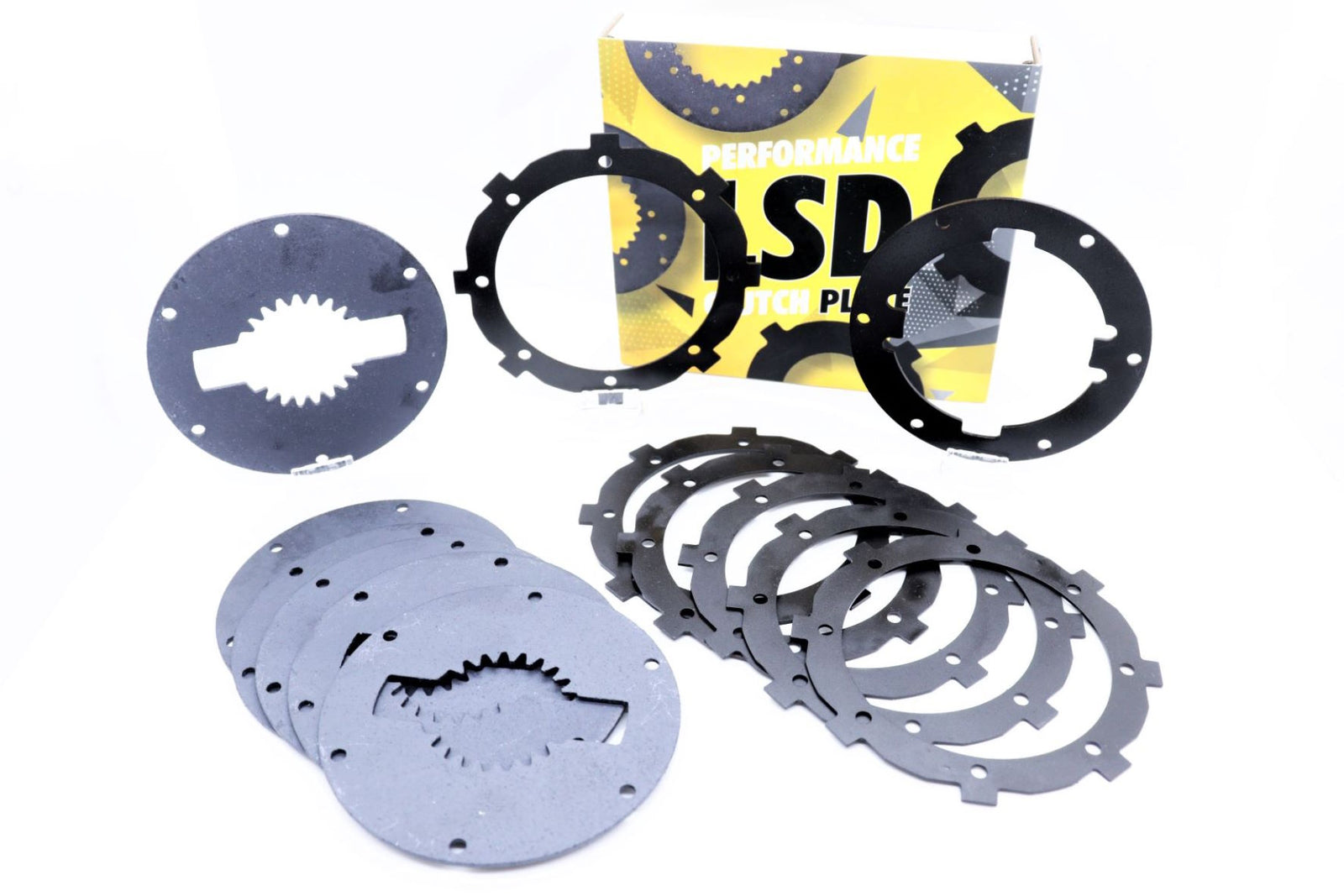

Subaru Impreza WRX STI DCCD & R180 LSD Performance Clutch Plate Upgrade
Performance drivetrain upgrade kit for Subaru Impreza WRX STI equipped with the DCCD (Driver's Control Center Differential) and R180 rear limited slip differential. RacingDiffs performance clutch plates restore proper locking capability and significantly increase torque capacity for high power builds.
This upgrade is designed for both street performance and track applications, especially for vehicles producing significantly more power than stock.
How Subaru DCCD Works
The Driver's Control Centre Differential (DCCD) allows the driver to adjust the center differential locking characteristics of the WRX STI drivetrain.
The system combines an electromagnetic multi-plate transfer clutch with a mechanical limited slip differential to control torque distribution between the front and rear axles.
Different operating modes adjust the torque distribution:
- Auto Mode – automatically selects optimal torque distribution
- Auto [+] – sends more torque to the front wheels for maximum traction
- Auto [-] – transfers more torque to the rear wheels for improved cornering response
- Manual Mode – six-step adjustment allowing the driver to choose the preferred locking level
When engine power is increased, the factory clutch plates often struggle to transfer the additional torque. RacingDiffs developed performance clutch plates capable of handling 1000+ horsepower while remaining a direct replacement for OEM parts.
R180 Rear LSD Upgrade
The R180 rear limited slip differential benefits significantly from upgraded clutch plates.
RacingDiffs clutch plates feature a Molybdenum-Ceramic friction coating, which offers several advantages compared to standard steel clutch plates.
- No metal shedding or debris generation
- Higher friction coefficient and stronger differential lock
- Improved durability under high torque loads
- Reduced operating temperature (up to 15% lower)
This makes the upgrade ideal for:
- Track day cars
- Drift builds
- Drag racing applications
- High horsepower street builds
Fits all OEM clutch-type Subaru R180 limited slip differentials.
Technical Details
- Application: Subaru Impreza WRX STI drivetrain
- Differential type: DCCD center differential + R180 rear LSD
- Upgrade type: Performance friction clutch plates
- Power capacity: Tested for 1000+ HP builds
- Installation: Direct replacement for OEM plates
Recommended Oil
RacingDiffs recommends using:
- Motul Gear Competition 75W140
This oil ensures proper friction characteristics and durability for clutch-type limited slip differentials.
OEM Part Numbers
- ST3900055040
- ST3900055020
- 390004S020
