BMW LSD 188L – E90, E92, E87, E82, E60 Limited Slip Differential (335i, 330i, 130i)
RD1011
1.849,00€1.549,00€
Transform your open differential into a real clutch-type LSD
Upgrade your BMW E90, E92, E87, E82 or E60 with a high-performance 188L Limited Slip Differential (LSD), designed for newer-generation BMW models equipped with low-friction differentials. This upgrade transforms your factory open differential into a true traction system, eliminating one-wheel spin and delivering improved grip, stability and control for street, drift and performance driving.
This drop-in unit replaces your factory open carrier with a fully forged, clutch-type differential core that delivers maximum traction and race-grade reliability — while staying civil on the street. It uniquely combines up to 100% lock under full throttle with zero noise or chatter in tight turns, striking the ideal balance between performance and comfort.
Features
- Plug-and-Play Installation: Direct swap for the stock open carrier — no welding, machining, or special setup required.
- Clutch-Type LSD Behavior: Smooth, progressive locking for predictable handling and superior grip in all conditions.

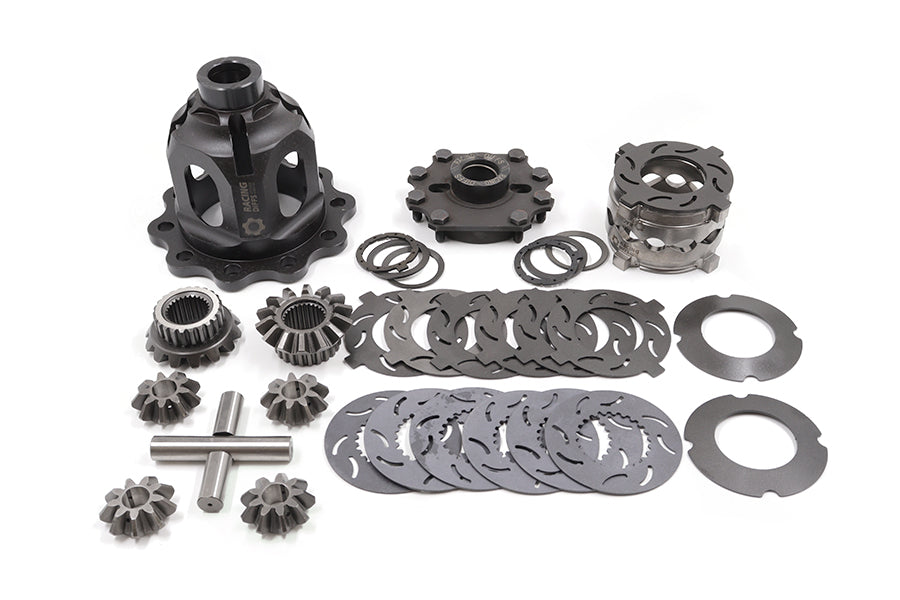

- Fully Serviceable Kit: Includes fully forged ramp plates, pressure rings, clutch packs, and preload springs.
- Adjustable Ramp Angles: 30/60, 30/30, 50/65 and other options for street, track, or drift setups.
- Fully Forged Construction: Every internal and external component is fully forged and thermally treated for maximum strength and longevity.
Performance Benefits
- Eliminates the one-wheel-spin problem permanently.
- Maximum traction and perfect corner-exit control.
- 100% lock on demand with silent, seamless operation in sharp turns.
- Improved stability, lap times, and driver confidence.
- Ideal for drift, track days, and spirited road driving.
- Lifetime warranty and worldwide DHL Express shipping.
Technical Specs / Installation Tips
| Differential types | BMW 188L |
| Lock type | Clutch-type LSD, fully forged internals |
| Ramp options | 30/60, 30/30, 50/65 |
| Max lock | Up to 100% under full throttle |
| Carrier preload | Set to 1 Nm |
| Backlash | 0.06–0.08 mm at ring gear (measure with dial indicator) |
| Required parts | Backlash Adjustment C-Clip Set (for setting backlash & preload) + new OEM-spec side (carrier) oil seals + bearings (optional) |
- Ring-gear bolts: clean threads, apply medium-strength thread locker, and torque to 140 Nm in a star pattern.
Fitment — BMW 188L
Compatible with BMW differentials of type 188L. Ordered by chassis.
E81 / E82 / E87 / E88 — 1 Series
120d M47N2 · 116d N47 · 118d N47 · 120d N47 · 123d N47S · 125i N52N · 128i N52N / N51 · 130i N52 / N52N (Automatic) · 135i N54 (Automatic)
E90 / E91 / E92 — 3 Series
318d M47N2 · 318d N47 · 320d M47N2 · 320d N47 · 325d M57N2 · 325i N52 / N52N / N53 · 325xi N52 / N52N / N53 · 328i N51 / N52N · 328xi N51 / N52N · 330i N52 / N52N / N53 · 330xd M57N2 / N57 · 330xi N52 / N52N / N53 · 335i N54 (Automatic) · 335xi N54
E60 / E61 — 5 Series
520i M54 · 525i M54 · 530i M54 · 523i N52 · 525d M57N · 525i N52 · 525xi N52 · 530i N52 · 530xi N52 · 520d M47N2 · 520d N47 · 520i N43 · 520i N46N · 520Li N46N · 523i N52N · 523i N53 · 523Li N52N · 525d M57N2 · 525i N52N · 525i N53 · 525Li N52N · 525xd M57N2 · 525xi N53 · 528i N52N · 528xi N52N · 530i N52N · 530i N53 · 530Li N52N · 530xd M57N2 · 530xi N52N · 530xi N53 · 535i N54 (Automatic) · 535xi N54 · 540i N62N (Automatic)
E63 / E64 — 6 Series
E63 630i N52 · E63 LCI 630i N52N · E63 LCI 630i N53 · E64 630i N52 · E64 LCI 630i N52N · E64 LCI 630i N53
E65 / E66 — 7 Series
730i M54 · 730Li M54
To confirm your differential’s final-drive (gear) ratio, check the BMW parts catalog and follow this quick video guide.
Compatible with BMW E90 325i, 330i, 335i, E92 335i, E87 130i, E82 135i, E60 525i, 530i and other models equipped with 188L differential. Ideal upgrade for eliminating one-wheel spin, improving traction and enhancing performance in daily driving, drifting and track use.
