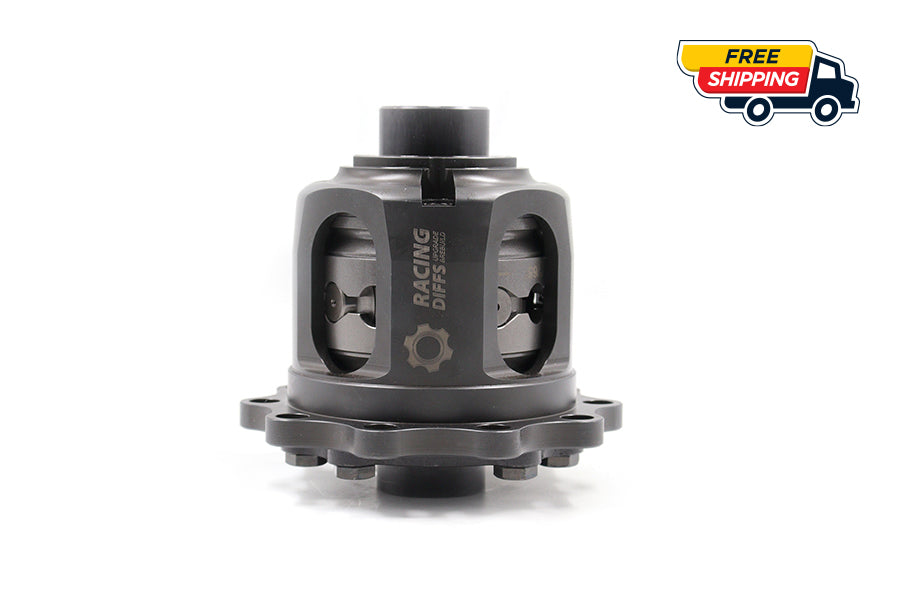

RacingDiffs 210 mm large‑case clutch LSD for BMW E46 M3, E39 M5, E34 M5 – forged internals, moly‑ceramic plates

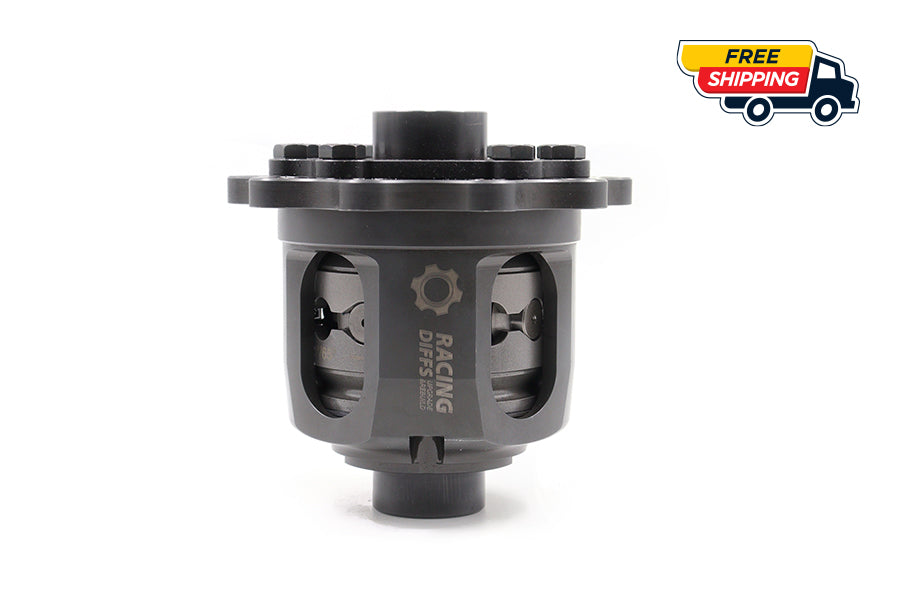

Adjustable‑ramp 210 mm large‑case LSD by RacingDiffs for BMW E46 M3 / E39 M5 – robust forged housing shown

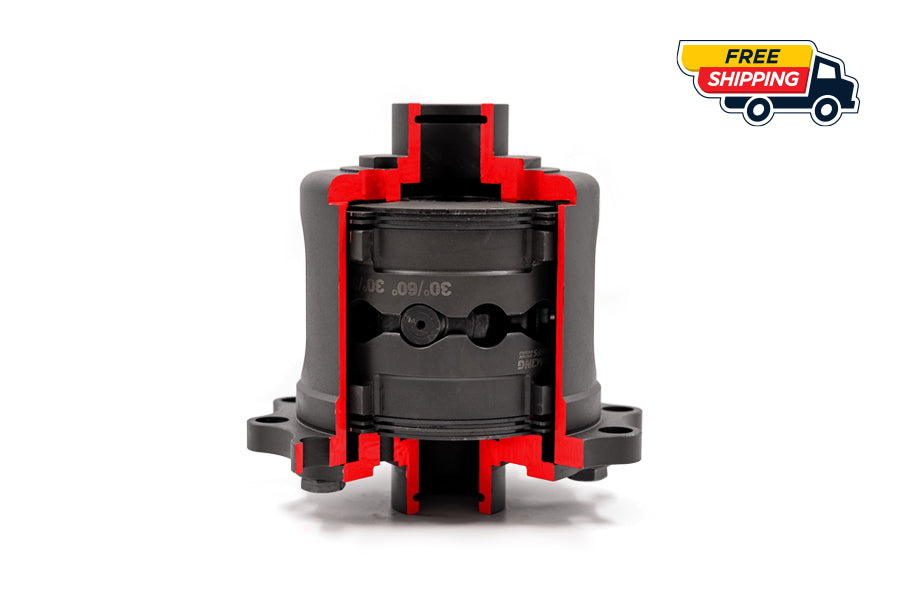

E36 3.2 M3 evo race spec LSD unit by racingdiffs

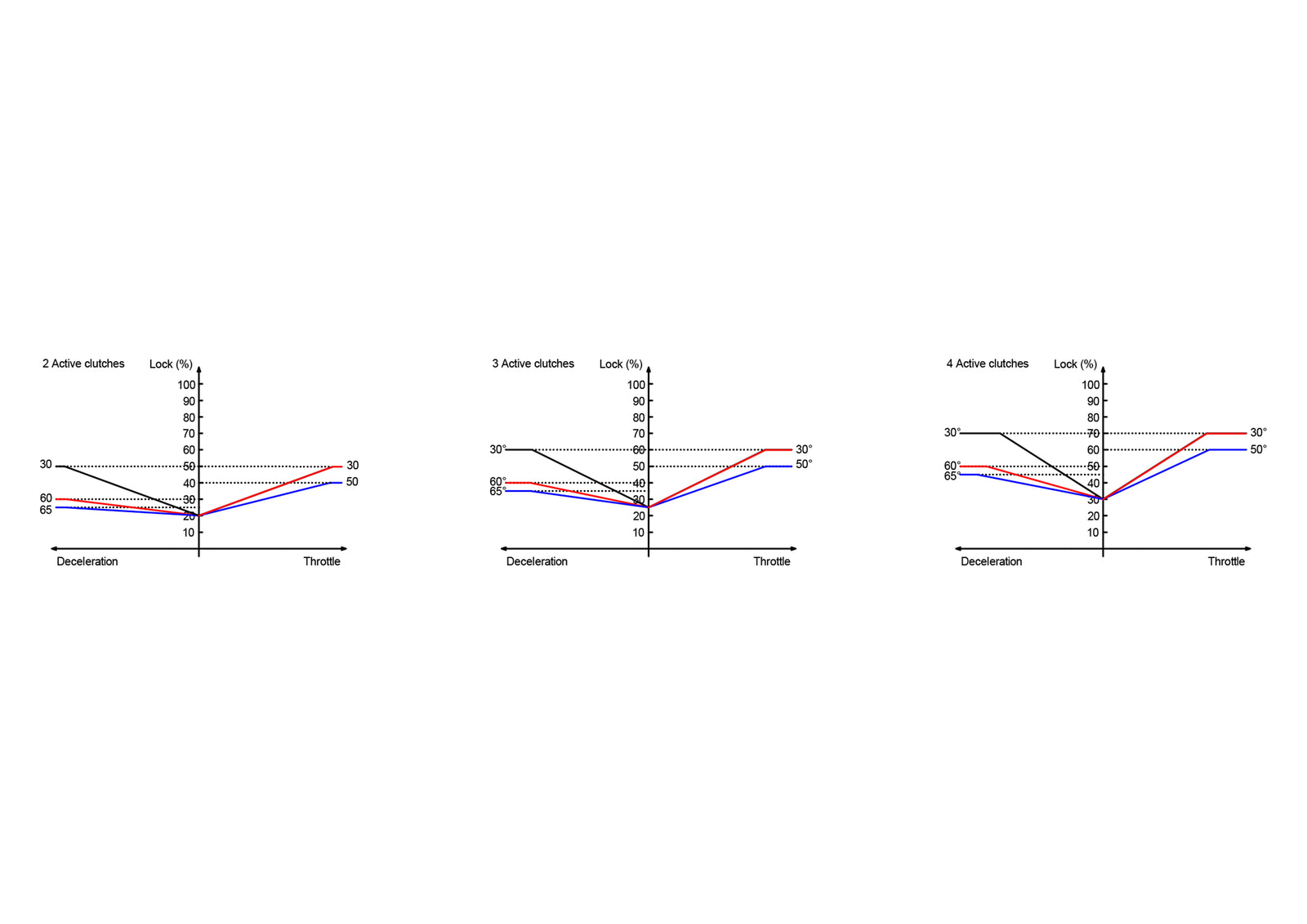

BMW 210mm large case LSD diagram of lock

BMW 210mm (Large case) LSD | Clutch-type, Fully adjustable

Name: BMW 210mm (Large case) LSD | Clutch-type, Fully adjustable
Brand: RacingDiffs
SKU: RD1003
Price: 1499.0 EUR
Availability: InStock

RD1003

.price-ui--loading { display: block !important; opacity: 1 !important; }

1.849,00€1.499,00€

BMW 210mm Limited Slip Differential (LSD) Unit — Experience Ultimate Driving Performance

Elevate the performance of your BMW to unprecedented levels with RacingDiffs’ BMW 210mm Limited Slip Differential (LSD) Unit. Built for drivers who accept nothing but the best—whether you’re pushing limits on track or seeking sharper dynamics on the road—this fully forged, adjustable LSD unlocks exceptional performance and durability.

Built with Unmatched Strength: Forged internals and forged housing deliver extreme strength and longevity—confident even on 1000+ hp builds.

Tailored Performance: Choose from three ramp-angle settings to match your driving:

30/30 — aggressive 2-way, ideal for professional drifting.
30/60 — versatile 1.5-way for hill climb, rally, and circuit.
50/65 — smooth engagement for daily comfort + track days.

Revolutionary Clutch Plates (Lifetime Warranty): Equipped with four Molybdenum-ceramics clutch plates for sustained peak performance in all conditions—covered by our lifetime warranty.

Silent Operation, Optimal Performance: With correct preload and premium LSD oil (e.g., Ravenol Racing 75W-140), the unit runs without unwanted noise or vibration.

Features

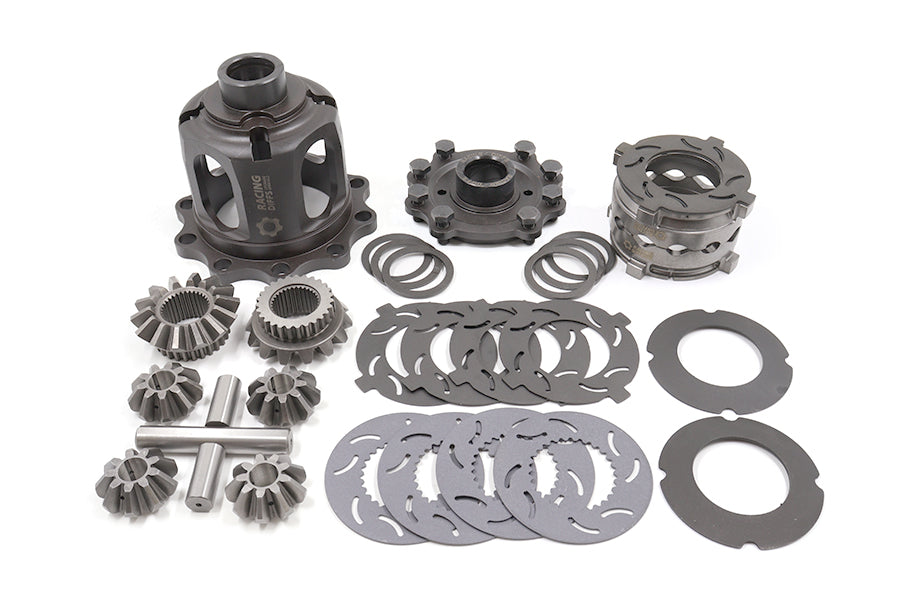

Fully forged construction: Forged internals and forged housing for maximum strength and longevity.
Adjustable ramp settings: 30/30 (2-way), 30/60 (1.5-way), 50/65 (smooth lock).
4 moly-ceramic clutch plates: Consistent grip and heat resistance, lifetime warranty included.
Track & street ready: Built to handle continuous high-performance use while remaining civil on the road.
Optimized NVH: Proper preload and quality LSD oil ensure quiet, vibration-free operation.

Performance Benefits

Superior traction: Dramatically improves acceleration and corner-exit drive.
Enhanced stability: Greater control and predictability at the limit.
Lap-time focus: Adjustable behavior to suit drift, time attack, and circuit racing.
High-power confidence: Engineered to withstand 1000+ hp applications.
Durable by design: Forged architecture resists wear, heat, and shock loads.

Technical Specs / Installation Tips

Differential size	BMW 210 mm
Ramp options	30/30 (2-way), 30/60 (1.5-way), 50/65 (smooth lock)
Clutch pack	4 x molybdenum-ceramics clutch plates (lifetime warranty)
Oil recommendation	Ravenol Racing 75W-140 (or equivalent high-quality LSD oil)
Backlash target	0.08–0.12 mm on most BMW ring-and-pinion sets

Carrier-adjustment shims required: Needed to set preload and backlash correctly.
Shims let you: Dial factory backlash, center the ring gear for a clean contact pattern, and eliminate whine/heat/premature wear.
TIP: We stock shim packs in 0.1 mm steps to fine-tune preload and backlash without chasing OEM spacers.
Watch before you wrench: Our 8-minute video covers bearing pressing, backlash measurement (dial indicator), shim selection, and contact-pattern checks with marking compound.
