Haldex Block Disc Set – 100% AWD Lock for Gen 1-5 (Drag & Track)
RD6013
265,00€239,00€
Haldex AWD Block Disc Set — 100% Lock for
Drag, Drift & Rally
Take your Haldex AWD to the next level with the RacingDiffs Block Disc Set, engineered to fully lock power distribution for 100% traction. Perfect for drag racing, drifting and rally where permanent AWD engagement maximizes launch and exit grip.
Why Racers Choose Haldex Block Discs
- Zero traction loss on launch: Stock Haldex is on-demand AWD; it sends torque rearward after slip begins. With block discs installed, AWD is fully engaged from the hit for consistent 60’ and ETs.
- Dyno-verified power handling: Haldex can transfer ~300 hp to the rear. Above that, clutch slip can cause front-wheel spin. Locking the unit keeps torque evenly distributed to all four wheels for maximum grip.
- Built for high-power builds: Eliminates torque lag on big-turbo cars; improves weight transfer and stability with launch control and transbrake setups through every gear.
Block Discs vs. Welding
- Stronger & reliable: No cracked carriers—backed by Lifetime Warranty.
- Fully reversible: Swap back to normal Haldex operation any time.
- Maintenance-free: No special oils or periodic service beyond routine checks.
- Versatile: Easily switch between street and race setups.

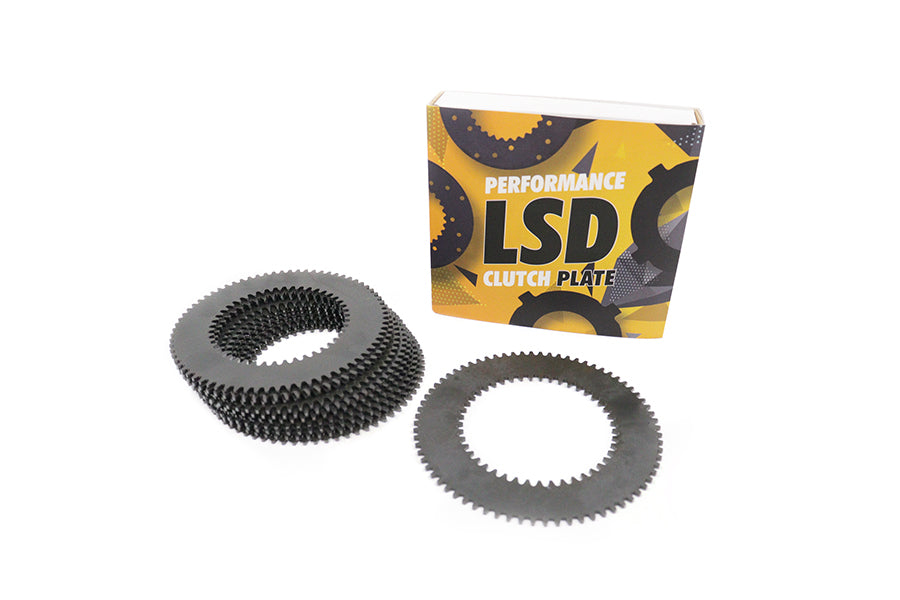

What’s in the Box
- Block discs for Haldex clutch pack (application-specific).
- Install notes with best practices and torque guidance.
Note: Bearings, seals and fluids are not included—inspect/replace during installation as needed.
Technical Notes & Installation Tips
- Function: Replaces clutch friction stacks to force permanent 100% engagement of the Haldex coupling.
- Setup: Verify clutch basket condition; follow factory procedures for sealing and fluid service; check for DTCs after reassembly.
- Use case: Intended primarily for motorsport/off-highway use. Expect increased driveline bind at full lock on tight turns.
- After install: Recheck fastener torque and fluid condition after the first heat cycle/session.
Vehicle fitment – Haldex Gen 1–5 AWD models
Fitment list – Haldex Generation 1
Audi
Audi A3 / S3 (8L) quattro (1998–2003)
Audi TT (8N) quattro (1998–2006)
Volkswagen
VW Golf Mk4 (1J) R32 / 4Motion (1998–2004)
VW Bora 2.8 V6 4Motion (1998–2004)
VW Sharan Mk1 (7M) (1998–2007)
VW New Beetle RSi (1998–2003)
SEAT
SEAT Leon Mk1 (1M) Cupra4 (1998–2005)
SEAT Alhambra (7M) (1998–2007)
Škoda
Škoda Octavia Mk1 (1U) 4×4 (1998–2004)
Fitment list – Haldex Generation 2
Audi
Audi A3 / S3 (8P) quattro, pre-facelift (2004–2008)
Audi TT / TTS (8J) quattro, early models (2007–2009)
Volkswagen
VW Golf Mk5 (1K) R32 / 4Motion (2004–2008)
VW Passat / CC (3C) 4Motion (2005–2009)
VW Transporter T5 4Motion, pre-facelift (2003–2009)
SEAT
SEAT Altea AWD (2007–2010)
SEAT Alhambra (7M) facelift (2005–2010)
Škoda
Škoda Octavia Mk2 (1Z) 4×4, pre-facelift (2004–2009)
Fitment list – Haldex Generation 3
Generation 3 Haldex systems were primarily fitted to selected Volvo, Ford, Land Rover and related AWD applications. They were not generally used in Volkswagen Group vehicles.
Because fitment varies by model, production date and Haldex unit version, please confirm compatibility using the identification details on the coupling or contact us with your VIN before ordering.
Fitment list – Haldex Generation 4
Volkswagen
VW Golf Mk6 (5K) 4Motion (2008–2012)
VW Golf R Mk6 (5K) (2008–2012)
VW Tiguan Mk1 (5N) (2008–2014)
VW Sharan Mk2 (7N) (2011–2015)
VW Passat / CC (B7) (2010–2015)
VW Transporter T5 Facelift (2009–2015)
VW Caddy Mk3 (2K) Facelift (2010–2015)
Audi
Audi A3 / S3 (8P) Facelift (2009–2012)
Audi TT / TTS / TT RS (8J) Facelift (2008–2012)
Audi Q3 / RS Q3 (8U) (2011–2013)
SEAT
SEAT Altea XL / Freetrack (2010–2015)
SEAT Alhambra Mk2 (7N) (2011–2013)
Škoda
Škoda Yeti, pre-facelift (2009–2014)
Škoda Superb Mk2 (3T) 4×4 (2008–2014)
Škoda Octavia Mk2 (1Z) 4×4 / Scout / vRS 4×4 Facelift (2009–2013)
Fitment list – Haldex Generation 5
Audi
Audi A1 / S1 (8X) quattro (2015–2018)
Audi A3 / S3 / RS3 (8V) quattro (2012–2019)
Audi Q2 / SQ2 quattro (2016–2019)
Audi Q3 / RS Q3 (8U / F3) quattro (2012–2019)
Audi TT / TTS / TT RS (8S / FV) quattro (2014–2019)
Volkswagen
VW Golf Mk7 (5G) 4Motion / Golf R (2012–2019)
VW Passat Mk8 (B8 / 3G) 4Motion / Alltrack (2015–2019)
VW Sharan Mk2 (7N) post-2015 facelift 4Motion (2015–2019)
VW Tiguan Mk2 4Motion (2015–2019)
VW Transporter T6 4Motion (2016–2019)
VW Caddy (2K) 4Motion post-2015 facelift (2015–2019)
VW T-Roc R 4Motion (2017–2019)
VW Arteon 4Motion (2017–2019)
SEAT
SEAT Alhambra 4Drive (2014–2019)
SEAT Leon Mk3 (5F) 4Drive (2012–2019)
SEAT Ateca 4Drive (2016–2019)
SEAT Tarraco 4Drive (2018–2019)
Škoda
Škoda Octavia Mk3 (5E) 4×4 (2012–2019)
Škoda Kodiaq 4×4 (Scout / vRS / Sportline) (2016–2019)
Škoda Superb Mk3 (3V) 4×4 (2015–2019)
Škoda Karoq 4×4 (2017–2019)
Škoda Yeti 4×4 (2014–2018)
Dominate the launch and stay planted. Choose your Haldex generation, lock it in, and unleash full-time AWD performance.
