BMW LSD Spider gear shim / Thrust washer set

• Restores correct spider gear positioning
• Helps reduce excessive internal play
• Provides the correct running surface behind the spider gears
• Protects the LSD housing from unnecessary wear
• Replaces worn, damaged or deformed factory washers
• Direct replacement for the original components
• Recommended for complete BMW ZF LSD rebuilds

The thrust washers sit between the spider gears and the LSD housing. Their purpose is to support the gears, maintain their correct position and provide a suitable contact surface as the gears rotate.

Over time, the original washers can become worn, damaged or deformed—particularly in differentials with worn clutch packs, excessive internal play or high mileage.

Replacing the washers during an LSD rebuild helps prevent direct contact between the spider gears and the differential housing.

Designed for original BMW ZF plated limited-slip differentials in the following sizes:

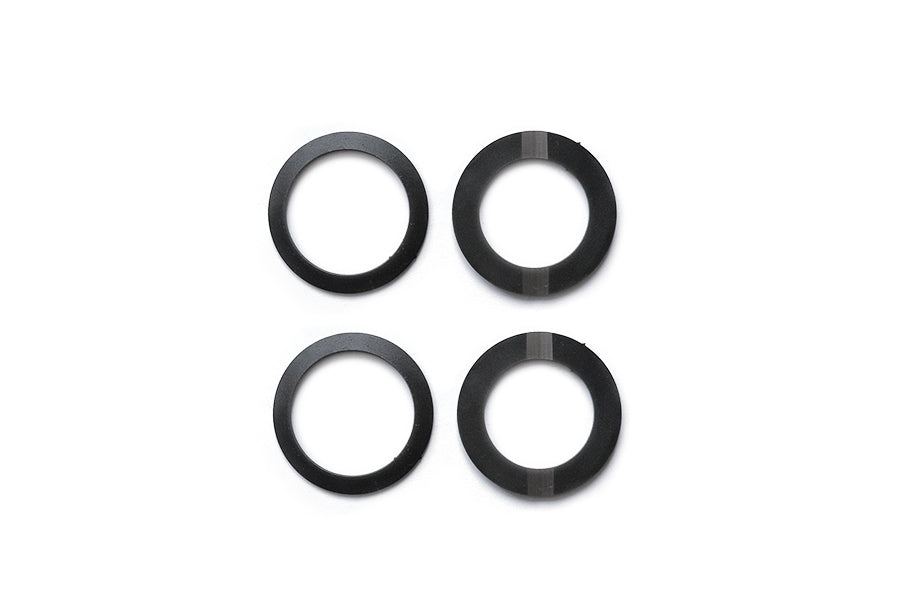

• 168mm small-case LSD

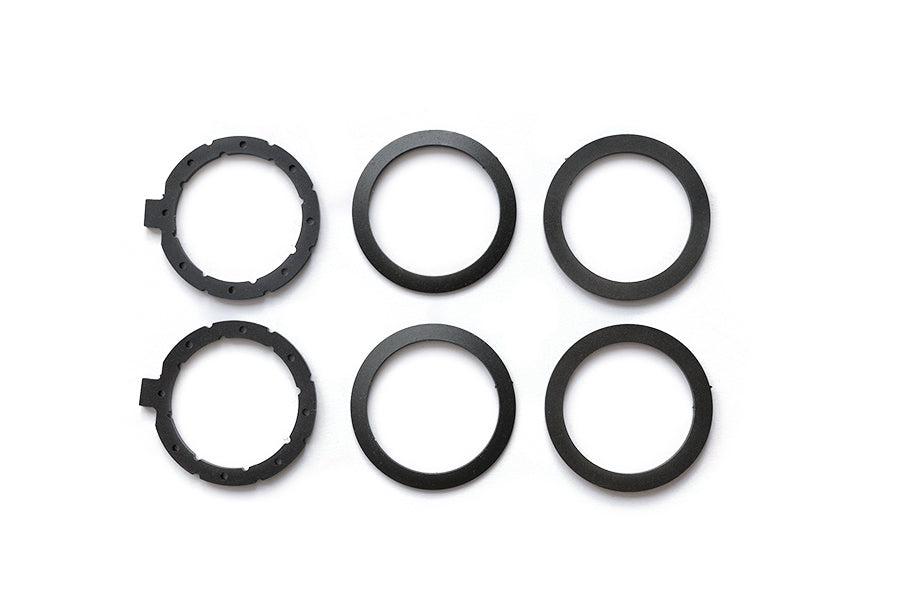

• 188mm medium-case LSD

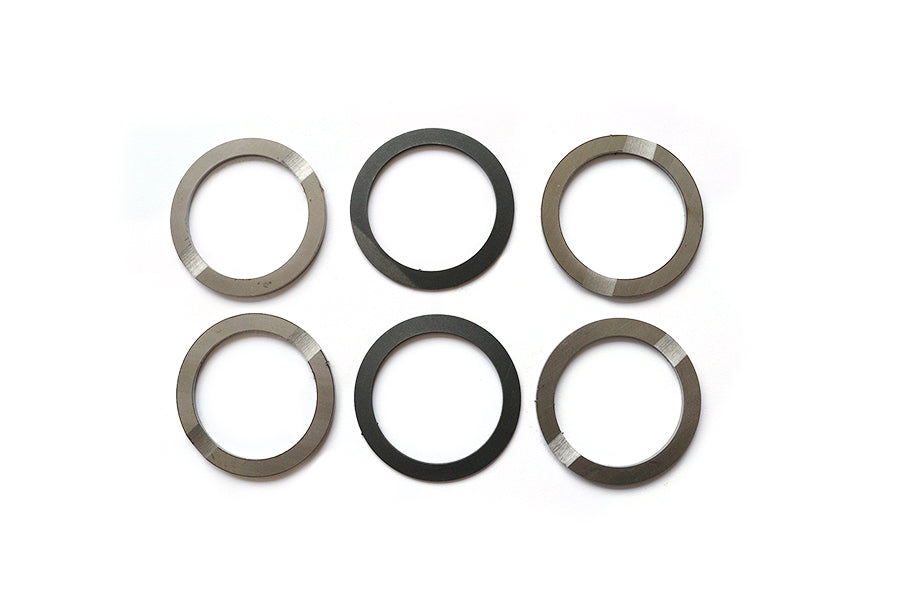

• 210mm large-case LSD

These LSD units are commonly found in BMW models including:

• BMW E30
• BMW E36
• BMW E34
• BMW E32
• BMW Z3

Please select the correct differential size before ordering.

• BMW LSD spider gear shim and thrust washer set
• Designed for original BMW ZF plated LSD units
• Available for 168mm, 188mm and 210mm differentials
• Replaces worn or damaged original washers
• Intended for differential repair and complete LSD rebuilds
• One selected set is required per differential

When rebuilding an original BMW ZF limited-slip differential, we recommend inspecting all internal components for wear, including:

• Small spider gears
• Large spider gears
• Spider gear cross pins
• Clutch and friction plates
• Pressure plates and preload components

RacingDiffs manufactures individual replacement components so worn BMW LSD units can be properly repaired without replacing the complete differential.
