Toyota Hilux LN106 & LN107 LSD Clutch Plate Kit

Elevate your Toyota Hilux LN106 or LN107’s performance with RacingDiffs’ Rear Limited-Slip Differential (LSD) Clutch Plate Kit. Unlike standard “rebuild kits” that only replace bearings and seals, this LSD-focused service pack renews the core of your diff—the friction system—to increase locking effect, improve traction, and smooth power delivery on- and off-road.

• Direct replacement for the OEM clutch stack in the factory rear LSD.
• Track & trail proven materials for durability under heat, load and contamination.
• Daily drivability with progressive engagement and reduced chatter when set to spec.

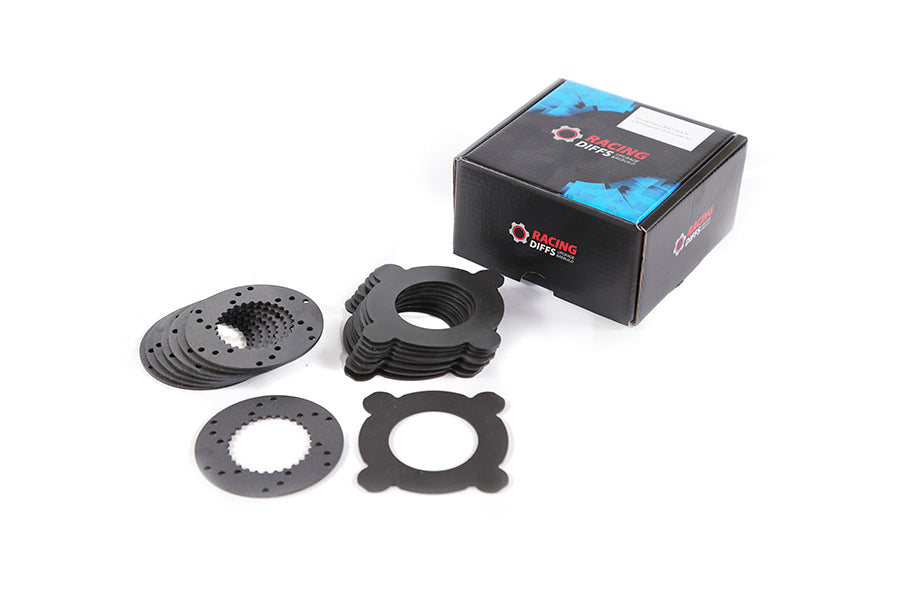

• Complete set of friction discs and steel plates (quantity and stack order matched to OEM specification).
• Preload/shim guidance for setting carrier preload and target breakaway torque.
• Installation guide (digital) with stack orientation and torque notes.

Note: Bearings, seals and side adjusters are not included—order separately if your housing requires overhaul.

• More traction, less one-wheel spin: Renewed friction stack restores locking performance for climbs, mud, sand and towing.
• Long service life: Wear-resistant moly/ceramic friction surface resists glazing and heat fade.
• Smoother engagement: Optimized plate finish reduces chatter when set to proper backlash and oil spec.
• Cost-effective upgrade: Rebuilds the working heart of the LSD without replacing the entire carrier.

Designed for the factory rear LSD fitted to:

• Toyota Hilux LN106 — rear axle with OEM limited-slip differential
• Toyota Hilux LN107 — rear axle with OEM limited-slip differential

Important: Toyota differentials vary by market and year. If you’re unsure, send us your VIN and a photo of the diff tag; we’ll confirm compatibility before shipping.

• Mark ring gear and carrier before disassembly; keep side adjusters/shims with their original sides.
• Follow the provided stack order and orientation arrows; lubricate plates with LSD oil during assembly.
• Set backlash and carrier preload to Toyota spec; verify the gear contact pattern with marking compound.
• Recommended oil: quality 75W-90 or 75W-140 GL-5 LSD oil (clutch-type safe). No extra friction modifier is usually required with our plates.
• After install, perform gentle figure-8 bedding for 10–15 minutes to stabilize breakaway torque.

Will this fix a noisy/weak LSD?
Yes—worn plates are the main cause of low lock and chatter. Replacing the stack and setting preload typically restores quiet, consistent operation.

Do I need new bearings and seals?
If there’s play/noise in the carrier or pinion, add a bearing & seal kit to your order. This clutch kit focuses on the LSD pack.
